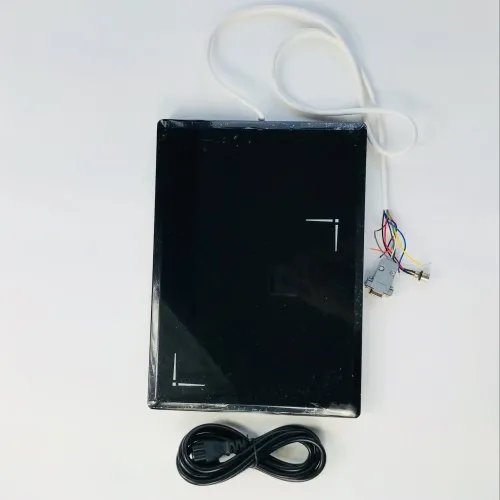

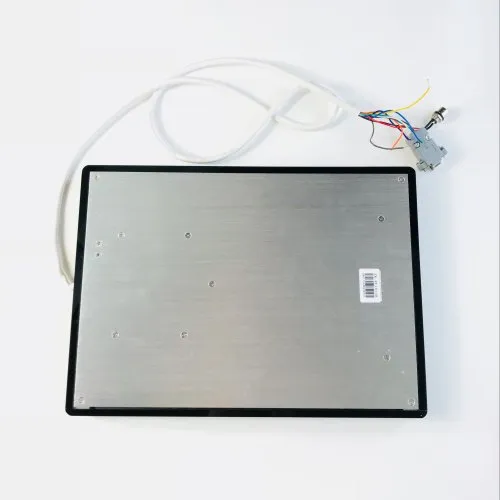

Specification

1.Self-intellectual property;

2.Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;

3.902~928MHz or 865-868MHz frequency band(frequency customization optional);

4.FHSS or Fix Frequency transmission;

5.RF output power up to 30dbm(adjustable);

6. Built-in 4dbi antenna with effect  reading distance up to 200cm

7.Support auto-running and interactive work mode;

8.Low power dissipation with single +9V DC power supply;

9.Support RS232 and Wiegand 26/34, RS485 interface;

10.Output format and parameters configurable;

11.Provide SDK and demo software to facilitate further development.
