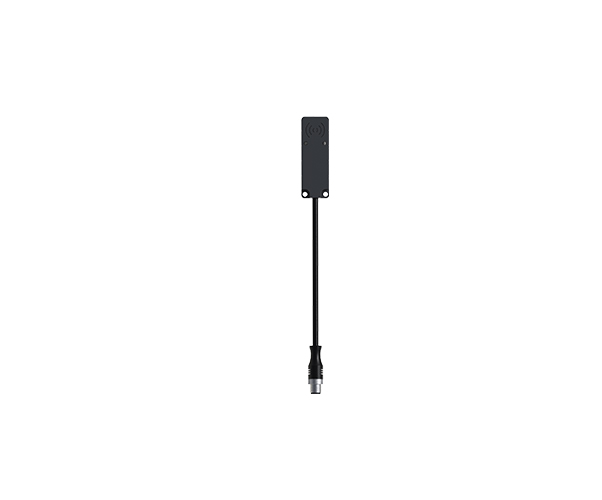

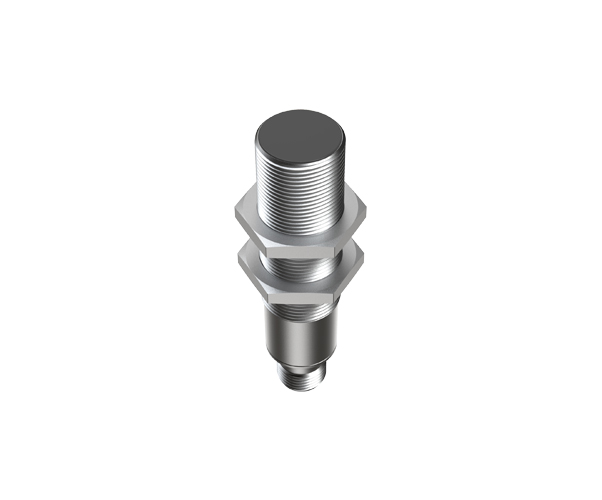

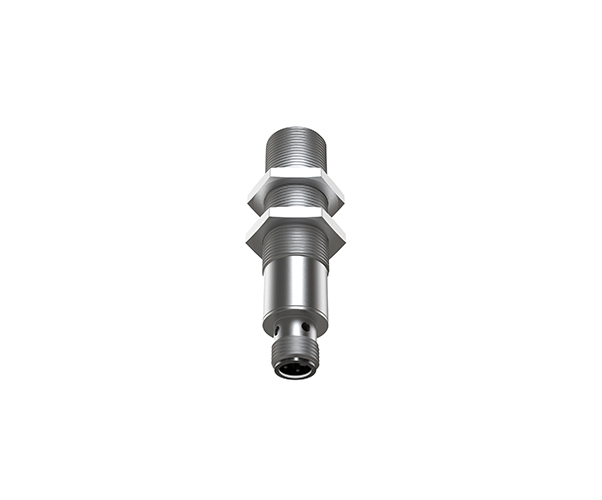

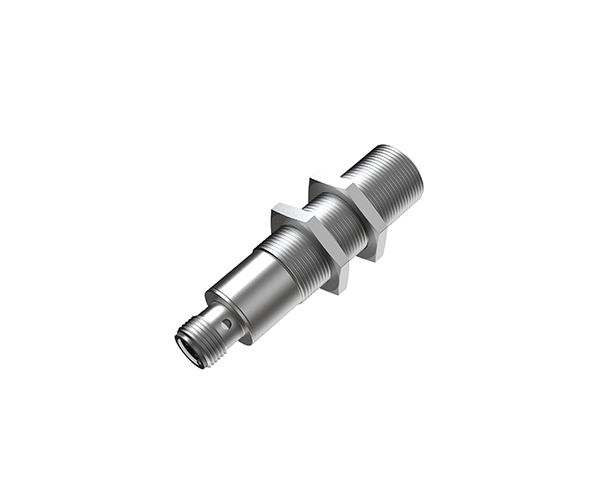

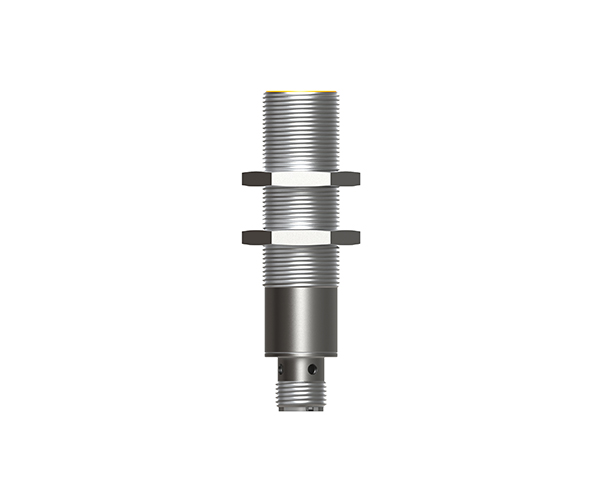

Baba Barfani offers, modbus rfid embedded reader is an enhanced high frequency RFID read-write device. Its working frequency is 13.56mHz, in line with ISO-15693 standard. Support serial communication and field bus communication.Sturdy, compact Brass nickel plating is designed to withstand harsh industrial conditions. This reader with features as high sensitivity , strong communication ability, good environmental adaptability and high level of protection .
| Product Name | 13.56 MHz Micro-power Modbus RTU485 Communication RFID Embedded Reader for Factory Automation |
| Frequency | 13.56 MHz (High Frequency, HF RFID) |
| Communication Interface | Modbus RTU485 |
| Communication Mode | Modbus RTU485 |
| Power Supply | Micro-power (typically 5V DC or 12V DC) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| RFID Standard Supported | ISO 14443, ISO 15693 |
| Data Acquisition Rate | Up to 50 tags per second (depends on environment) |
| Tag Compatibility | HF RFID Tags (ISO 14443 Type A/B, ISO 15693) |
| Reading Range | 5 cm to 50 cm (depending on tag and environmental conditions) |
| Protection Rating | IP65 (Industrial-grade dust and water-resistant) |
| Power Consumption | Low power, typically < 1W> |
| Dimensions | (Model-Specific, typically compact for embedded use) |
| Mounting Type | Embedded (can be integrated into machinery or factory systems) |
| Network Protocol | Modbus RTU |
| Status Indicators | LED indicators for power, communication, and tag reading |
