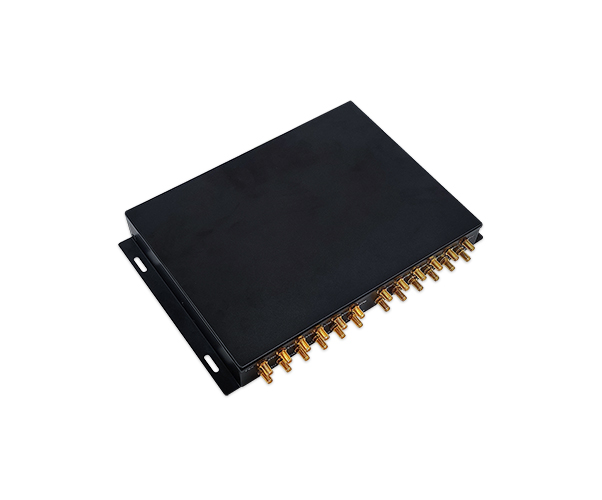

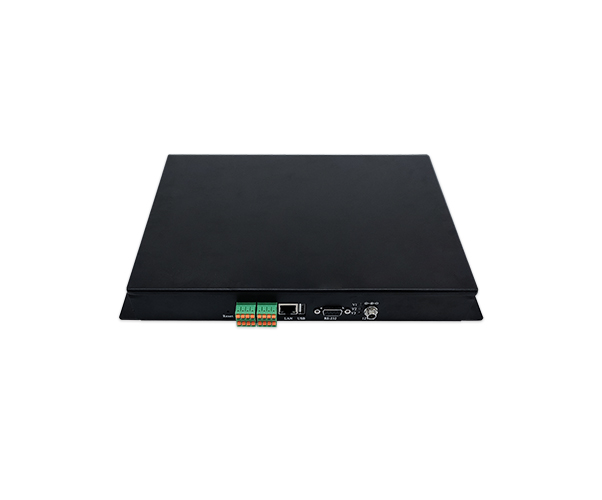

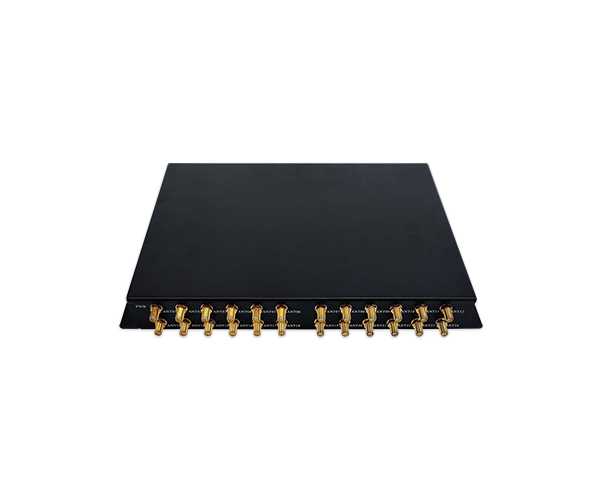

HF 13.56Mhz ISO15693 long range fixed RFID reader RD5224 owns high-sensitivity and fast collision-resistance processing algorithm. It can read stably 70pcs electronic tags each second, support Ethernet and RS232 connection, be compatible with ISO15693 and ISO18000-3 transponders. It can widely apply in personnel identification, jewelry inventory, storage logistics, commodity and production automation management, etc.
| Product Name | High Frequency Long Range Multiport RFID Reader/Writer for Smart Library & Unmanned Convenience Store |
| Type | HF RFID Reader/Writer (Long Range, Multiport) |
| Frequency Range | 13.56 MHz |
| RFID Protocols | ISO 15693, ISO 14443A/B, ISO 18000-3, NFC |
| Ports | Multiple ports (typically 4-8 SMA ports for external antennas) |
| Reading Distance | Up to 3 meters (depending on tag type and environment) |
| Writing Capability | Read and write functionality for compatible RFID tags |
| Power Supply | 12V DC, Power over Ethernet (PoE) |
| Interfaces | RS-232, RS-485, Ethernet, Wiegand (optional) |
| Tag Compatibility | Supports 13.56 MHz RFID tags, ISO 15693, ISO 14443A/B, NFC tags |
| Antenna Type | External antennas (SMA ports for flexible configuration) |
| Signal Protocol | EPC, ISO 15693, ISO 14443A/B |
| Reading Speed | Up to 100 tags per second |
| Environmental Protection | IP65 (Dust and water-resistant) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 220 mm x 180 mm x 45 mm (approx.) |
| Weight | 0.6 - 1.2 kg (approx.) |
| Mounting Options | Wall mount, ceiling mount, or desk mount |
| Software Integration | Compatible with major library and store management systems |
| User Interface | LED indicators, Audible alarms for errors or alerts |
| Power Consumption | Low Power Consumption (typically < 5W> |
| Alarm System |
Visual (LED) and Audible alarms (e.g., for anti-theft) |
