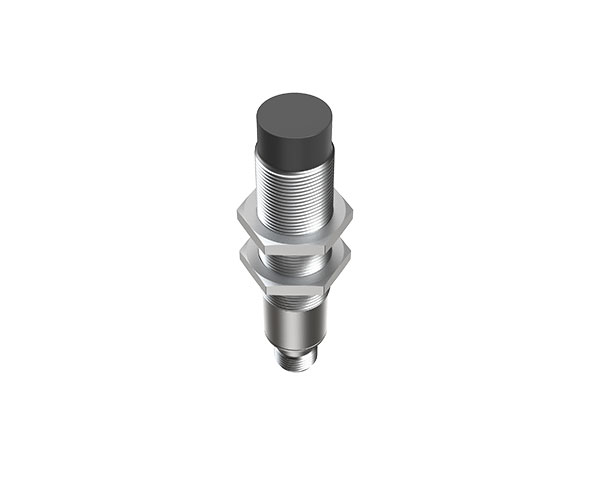

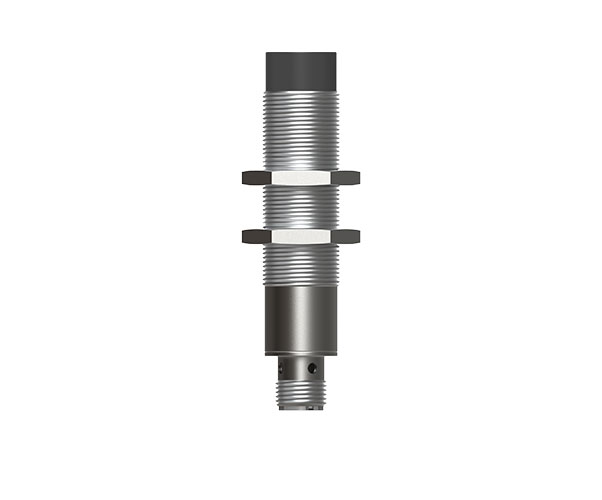

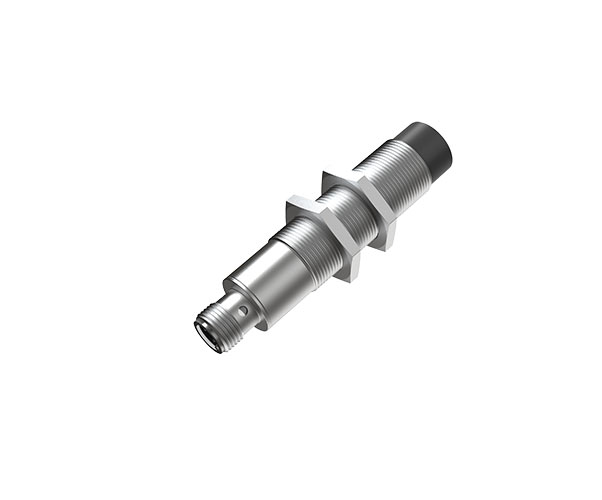

HF Modbus RS485 Compact RFID device M12 Interface used for distributed production line

₹ On Request

Baba Barfani offers, modbus RS485 reader is high frequency RFID read/write devices with integrated antenna. They have the characteristics of fast identification speed,high accuracy and convenient networking. Operating frequency is 13.56MHz,in line with ISO15693 and ISO14443 TypeA/B.Supporting multiple (configurable) communication methods such as RS485 and Ethernet (POE). The housing is made of Brass nickel plating.

Specification

Product Name HF Modbus RS485 Compact RFID Device with M12 Interface for Distributed Production Line
Operating Frequency 13.56 MHz
Supported Standards ISO 15693, ISO 14443 Type A/B
Reading Range Up to 35 mm
Communication Mode Modbus RTU over RS485
Communication Rate 10/100 Mbps
Power Supply 24V DC (9-30V)
Current Consumption <0>
Physical Dimensions ?18 mm × 82.5 mm
Housing Material Brass with nickel plating
Interface M12A (4-pin male)
Operating Temperature -40°C to +85°C

  • Additional Information:

    • Humidity 5% to 95% RH (non-condensing)
    Protection Rating IP67 (dustproof and waterproof)
    Weight 60 g
    Mounting Method Fixed using two nuts or by twisting into place
    Indicator Lights Two LEDs (Red and Green)
    Features - Built-in design with strong anti-interference capability
      - High sensitivity read-write performance
      - Integrated design for easy installation and deployment
      - IP67 protection grade suitable for harsh environments
    Applications - Factory automation
      - Engine assembly lines
      - Warehouse management
      - Logistics and inventory control
